The Ultimate Guide to Zero-Knowledge proofs

From Theoretical Foundations to Real-World Applications

ZK this, ZK that…

The abbreviation "ZK," is now a ubiquitous term in the crypto space. Almost every new startup seems to feature some version of ZK in its pitch deck. Even established blockchains like Polygon are marketing new products based on these buzzwords.

But Zk is much more than a buzzword. It is something much more interesting…

…today, I’ll educate you!

What are Zero-knowledge proofs (ZkPs)?

Suppose you have two balls, one red and one green, and you have a colour-blind friend who cannot distinguish between them. You want to prove to your friend that the balls are indeed different colours without revealing which is which.

How would you do it?

1. You show both balls to your friend and then hide them behind your back.

2. You either swap the balls' positions or leave them as they are.

3. Your friend then asks if you swapped them.

Since you can see the colours, you can always answer correctly. If your friend repeats this test enough times, they can be convinced that the balls are different colours without knowing which ball is which. This is exactly how ZkPs work…

Zero-knowledge proofs (ZKPs) are cryptographic protocols that allow one party (the prover) to demonstrate to another party (the verifier) that they know a particular piece of information without revealing the information itself.

The foundation for zero-knowledge proofs (ZKPs) was laid in the 1970s during the development of modern cryptography. Cryptographers like Whitfield Diffie and Martin Hellman introduced key concepts, but it wasn’t until the 1980s that Shafi Goldwasser, Silvio Micali, and Charles Rackoff formally introduced ZKPs in their paper, "The Knowledge Complexity of Interactive Proof Systems."

They defined ZKPs as protocols where one party (the prover) proves to another (the verifier) that a statement is true without revealing any additional information, demonstrating the key properties of completeness, soundness, and zero knowledge.

• Completeness: If the statement is true and both the prover and verifier follow the protocol correctly, the verifier will be convinced that the statement is true.

• Soundness: If the statement is false, no cheating prover can convince the honest verifier that it is true, except with some small probability.

• Zero-Knowledge: If the statement is true, the verifier learns nothing other than the fact that the statement is true. The prover does not reveal any information beyond the validity of the statement.

For ZkPs to function, four parties must be present:

• A prover

• A verifier

• A proof

• A statement

The Prover is the entity that knows the secret information and generates the proof to convince the verifier of the truth of a statement. The Verifier is the entity that checks the validity of the proof provided by the prover without gaining any knowledge of the underlying secret.

The Proof is a piece of evidence generated by the prover that convinces the verifier of the truth of a statement without revealing any additional information, while the statement is the claim that the prover wants to prove to the verifier. For example, "I know the password to this account" or "I know a solution to this mathematical problem."

In 1988, Amos Fiat and Adi Shamir proposed the Fiat-Shamir heuristic, converting interactive proofs into non-interactive ones, and expanding ZKP applications. During the 1990s, practical implementations were developed, leading to more efficient cryptographic protocols. By the 2000s, zk-SNARKs (zero-knowledge succinct non-interactive arguments of knowledge) emerged, enabling efficient proof verification and minimal communication, crucial for blockchain applications.

In the 2010s, cryptocurrencies like Zerocoin and Zerocash integrated ZKPs to enhance privacy and anonymity, with Zcash launching in 2016 using zk-SNARKs for strong privacy guarantees. By 2017, Eli Ben-Sasson and colleagues introduced zk-STARKs (zero-knowledge scalable transparent arguments of knowledge), addressing the limitations of zk-SNARKs and offering improved scalability and transparency.

Today, ZKPs are integral to many blockchain platforms, including Ethereum and Polygon, enhancing scalability and privacy. Ongoing innovations continue to develop new ZKP-based solutions for secure voting systems, identity verification, and more.

Why are ZKPs Important?

1. Privacy: ZKPs allow the verification of information without revealing the underlying data, preserving the privacy of the prover.

2. Security: By not exposing sensitive information, ZKPs reduce the risk of data breaches and unauthorized access.

3. Efficiency: In many cases, ZKPs can reduce the amount of data that needs to be transmitted and verified, improving efficiency.

Types of Zero-Knowledge Proofs

1. Interactive Zero-Knowledge Proofs: In these protocols, the prover and verifier engage in multiple rounds of interaction. The verifier challenges the prover, who then responds with evidence. This process continues until the verifier is convinced of the proof's validity.

2. Non-Interactive Zero-Knowledge Proofs: These proofs do not require interaction between the prover and verifier. The prover generates proof that can be verified by the verifier without further communication. Non-interactive proofs are often made possible through cryptographic techniques such as the Fiat-Shamir heuristic.

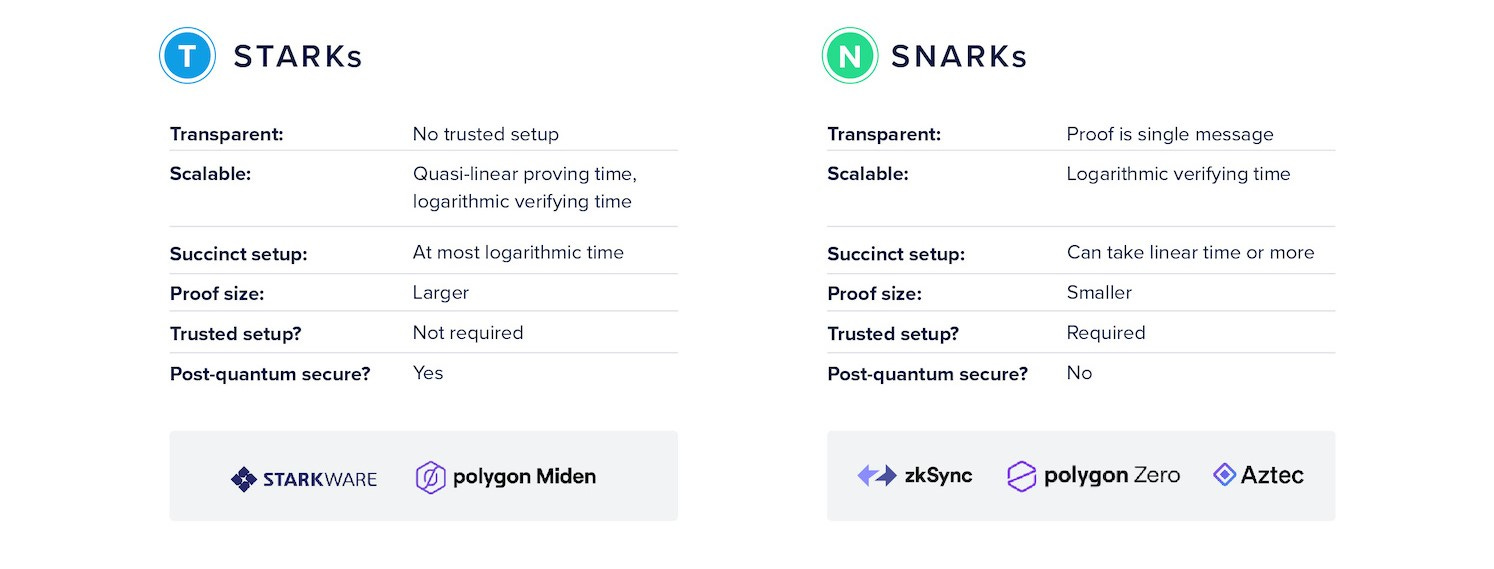

Popular Protocols of ZKPs

1. zk-SNARKs: Zero-Knowledge Succinct Non-Interactive Arguments of Knowledge are highly efficient, non-interactive proofs that are both succinct and verifiable quickly. zk-SNARKs are widely used in blockchain applications, particularly for enhancing privacy and scalability. Zcash is a notable example of a cryptocurrency that uses zk-SNARKs for private transactions.

2. zk-STARKs: Zero-Knowledge Scalable Transparent Arguments of Knowledge are ZKPs developed to address some limitations of zk-SNARKs. zk-STARKs offer greater scalability and do not require a trusted setup. They are resistant to quantum attacks, making them a promising technology for future-proofing cryptographic systems.

The Mathematical Foundation simplified

At the core of ZKP technology lies sophisticated mathematical constructs that form the basis of security and verifiability such as:

• One-Way Functions and Trapdoor Functions

• Commitment Schemes

• Cryptography of Elliptic Curves

One-way functions are mathematical functions that are easy to compute in one direction (forward computation) but computationally hard to invert (finding the pre-image) without additional information (trapdoor). This asymmetry is essential in ZKPs because it ensures that once a prover commits to a certain value (e.g., a solution to a problem or a commitment to a secret), they cannot later change it or derive the original input from the output alone.

In the context of ZKPs, one-way functions are typically used to generate challenges that the prover must respond to, demonstrating knowledge of some secret without revealing it.

Trapdoor Functions are a specific type of one-way function that includes additional information (trapdoor) that allows efficient inversion of the function.

In ZKPs, trapdoor functions enable the prover to convince the verifier that they possess certain knowledge (such as a solution to a problem) without revealing the knowledge itself. The verifier can use the trapdoor to verify the correctness of the proof without being able to compute the solution themselves from the information provided by the prover.

Commitment schemes are often used to commit to the initial state or value that the prover claims to possess without revealing it. This commitment is then used during the interactive or non-interactive proof process to demonstrate knowledge or possession of certain information without disclosing the information itself until the final verification step.

Cryptography of Elliptic Curves are mathematical objects defined by an equation of the form:

y2=x3+ax+b

where x and y are coordinates satisfying the equation, and a and b are constants that define the curve's shape. These curves have a unique geometric structure that leads to interesting properties when combined with modular arithmetic over finite fields.

ECC operations, such as point multiplication (scalar multiplication), which forms the basis of many ECC algorithms, are computationally efficient compared to other public-key cryptosystems. This efficiency is crucial for applications where rapid key generation, encryption, and decryption are required.

ECC is believed to be more resistant to attacks by quantum computers compared to traditional RSA-based cryptography. This is due to the mathematical hardness of the elliptic curve discrete logarithm problem (ECDLP), which forms the basis of ECC security.

Computational Requirements

One significant challenge with ZKPs lies in the computational resources required for both generating and verifying proofs. The complexity of ZKP protocols can vary depending on the specific type of proof and the underlying cryptographic primitives used.

Some key aspects include:

• Prover's Computation: Generating a ZKP often involves complex mathematical computations, including hashing, encryption, and potentially costly operations such as modular exponentiation or elliptic curve operations. The prover must perform these computations efficiently to generate proof within a reasonable timeframe.

• Verifier's Computation: Verifying ZKPs also requires computational resources, although typically less than generating proofs. Verifiers need to check the validity of the proof against the stated conditions or assertions without being able to deduce any additional information beyond the proof itself.

• Scalability Concerns: As the size and complexity of data increase, the computational demands of ZKPs can become prohibitive. This scalability issue is particularly relevant in applications like blockchain, where transactions need to be processed quickly and efficiently.

Trust Assumptions

Another challenge in implementing ZKPs involves the assumptions made about the underlying cryptographic primitives and setups. These assumptions include:

• Security Assumptions: The security of ZKPs often relies on the hardness assumptions of certain mathematical problems, such as the discrete logarithm problem or the difficulty of factoring large integers. If these assumptions are compromised (e.g., due to advancements in quantum computing), the security of ZKPs could be undermined.

• Setup Assumptions: Some ZKP protocols require initial setup parameters or trusted parties (like the setup phase in zk-SNARKs) to generate public parameters or randomness. The trustworthiness of these parameters or parties is critical since any compromise could lead to vulnerabilities or backdoors in the ZKP system.

• Zero-Knowledge Assumption: ZKPs are designed to uphold the zero-knowledge property, meaning that no information beyond the validity of the statement being proven is revealed. Ensuring this property holds under all conditions and implementations can be challenging and requires careful cryptographic design and analysis.

Conclusion:

While ZKPs offer significant benefits, their adoption also raises ethical considerations that must be carefully addressed:

• Privacy vs. Accountability: Balancing the need for privacy with the necessity of accountability and transparency in certain contexts, such as law enforcement and regulatory compliance.

• Potential Misuse: Ensuring that ZKPs are used ethically and responsibly to prevent misuse for illicit activities or circumventing legal obligations.

• Accessibility and Equity: Considering the equitable access to ZKP technologies and ensuring that their deployment does not exacerbate existing digital divides or inequities.

As ZKPs continue to evolve and find new applications, they will undoubtedly play a pivotal role in shaping the future of digital trust and privacy.

Watch out!
